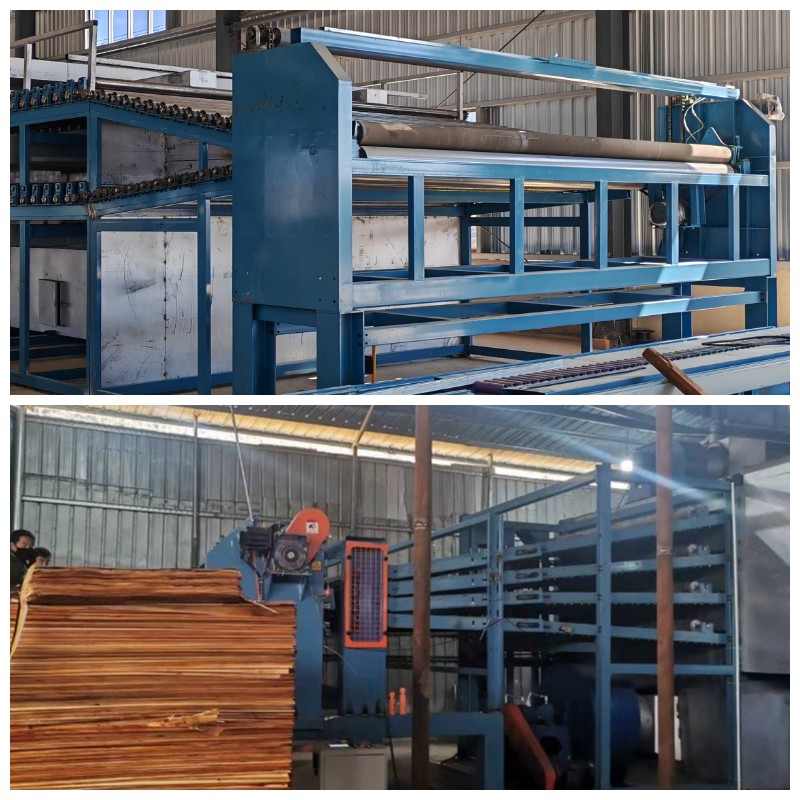

Semi-Auto Veneer Dryer

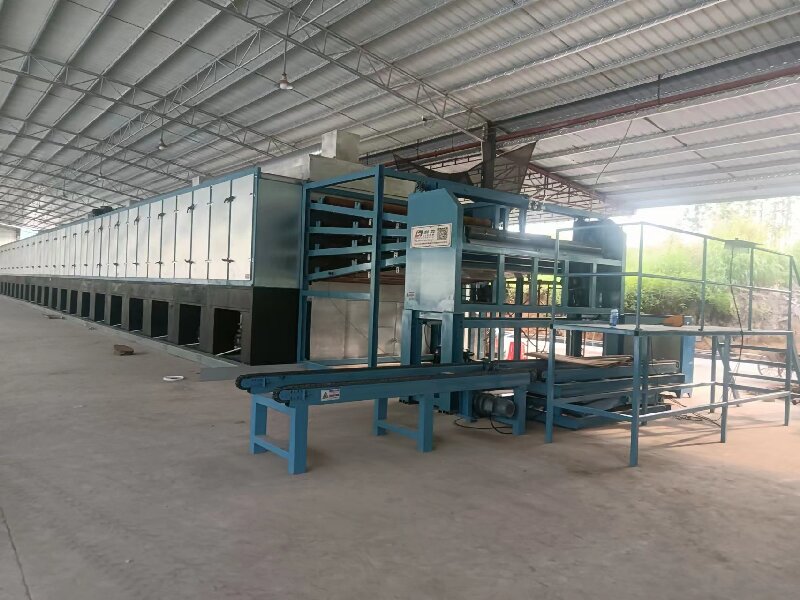

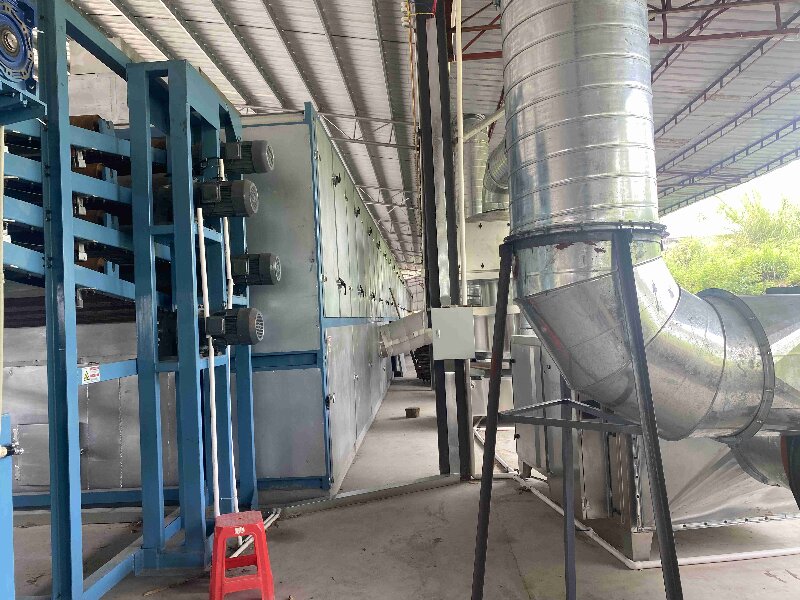

Shine’s four-layer veneer drying machine is a high-performance industrial dryer designed for large-scale wood processing. With a working length of 36 meters and a working width of 3.5 meters, this dryer ensures uniform heat distribution and efficient moisture removal, achieving a daily output of 120-130m3 of dried veneer. This roller-type veneer dryer features a chain-driven system with veneer drying technology that rotates the upper and lower drums in opposite directions, ensuring efficient and uniform drying. Utilizing hot air and other advanced drying media, the Shine Veneer Dryer offers superior performance compared to conventional dryers.
Key Features & Benefits
Large Drying Capacity
36m length × 3.5m width drying chamber allows for high-volume processing.
Four-layer design optimizes space and enhances airflow for consistent drying.
High Efficiency & Stable Output
A production rate of 120-130 m³/day ensures continuous operation to meet industrial demands.
An advanced heat circulation system reduces energy consumption while maintaining drying quality.
Precision Temperature & Humidity Control
Intelligent monitoring system prevents over-drying or cracking.
Adjustable airflow settings for different wood species and thicknesses.
Durable & Low-Maintenance Structure
Corrosion-resistant materials extend machine lifespan.
Easy-access design simplifies cleaning and maintenance.
Application Scenarios
This veneer drying machine is ideal for:
Plywood manufacturing plants
Furniture production factories
Engineered wood product industries
Product Parameter
Model No | GTH35-36 |
| Working Width | 3.5m |
| Deck | 4 |
| Roller Material | Q235B, φ 102 Special Shaft Tube |
| Heating Area Length | 32m |
| Cooling Area Length | 4m |
| Veneer Thickness and Size | Customers' Request |
| Veneer Water Moisture | Fresh to Customers' Requests |
| Heating Material | Biomass Burner |
| Drying Capacity(m³/day) | about 120-130（24 Working Hours） |
| Veneer Transport Speed | 5-22m/min, 16A Chain |
| Power of Hot Air Blower | 4KW(32PCS) |
| Power of Traction Motor | 5.5KW, Frequency Control (4PCS) |
| Power of Intake Air Blower | 15KW(2PCS) |
| Power of Cold Air Blower | 4KW(4PCS) |
| Power of Biomass Burner | 16.5KW |
| Power of the Automatic Feeding System of Waste Wood | 3.7KW |
| Total Power | 216KW |
| Actual Electricity Consumption | About 151 kWh per hour |
| Labor Cost | Need 3-4 Persons Per Shift |
Why Choose Shine’s Veneer Dryer?
High productivity (120-130 m³/day) meets industrial-scale demands.
Energy-saving technology reduces operational costs.
Sturdy construction ensures long-term reliability.
